Gate Valve For Full Bore Flow And Isolation In Pipeline Systems Khed
Details of Gate Valve
Rugged Flow Control Device for Shut-Off Operations
We are a company manufacturing Gate Valve systems built to ensure minimal pressure loss and unrestricted flow in both high-pressure and low-pressure pipelines. These valves operate via a sliding gate mechanism, providing full bore access and reliable shut-off for a wide range of fluids.
Technical Parameters
- Valve Diameter Range: 40 mm to 1200 mm
- Body Material: Cast iron, forged steel, stainless steel
- Wedge Type: Solid wedge, flexible wedge, split wedge
- End Connection: Flanged, threaded, butt weld, socket weld
- Pressure Class: PN 10, PN 16, Class 150 / 300 / 600
- Temperature Range: -10°C to 425°C
- Bonnet Type: Bolted, pressure sealed
- Stem Type: Rising or non-rising
- Operation Mechanism: Handwheel, gearbox, electric actuator
- Compliance: BS 5163, API 600, EN 1171 standards
Extensively Used in Industrial Units
Extensively used in industrial units like petrochemical plants, oil refineries, wastewater lines, fire water networks, power stations, irrigation lines, boiler systems, steel mills, and marine-grade infrastructure, where full shut-off capability is essential.
Valve Manufacturing and Inspection Process
Bodies are cast or forged using certified raw materials. Gate wedges are CNC machined for tight sealing. All valves undergo hydrostatic testing, seat leakage testing, stem packing leak evaluation, and dimensional conformity checks before dispatch. Surface coatings are applied for corrosion protection.
Setup Instructions for Secure Installation
Clean pipeline flanges and ensure alignment. Position the valve with the gate in a slightly open position to prevent seal damage. Tighten flange bolts evenly in a crisscross pattern. Verify operation by full open-close cycles. Avoid applying side pressure on the valve stem during setup.
Maintenance Procedure and Long-Term Care
Inspect the stem packing regularly to prevent leakage. Lubricate stem threads if manually operated. Test the valve twice monthly to avoid jamming. Clean internal parts during scheduled plant shutdowns. For actuated types, check actuator signals and limit switches periodically.
Features That Maximize Pipeline Efficiency
- Full port opening reduces flow resistance
- Suitable for bi-directional flow isolation
- Ideal for both above-ground and underground piping
- Strong construction tolerates high pressure and temperature
- Versatile designs support multiple actuation modes
Offered Product
Gate Valve
Types Of Gate ValveWCB/CS Gate Valve FE FCS Gate Valve 800# SE Knife Edge Gate Valve Gate Valves, Gate Valves Manufacturers, IndiaMATERIAL SPECIFICATIONPART NO.DESCRIPTIONMATERIAL1BODYWCBWC6A 352 LCBCF8/CF8MCF3/CF3M2BONNETWCBWC6A 352 LCBCF3/CF3MCF3/CF3M3YOKEWCBWC6A 352 LCBCF3/CF3MCF3/CF3M4WEDGECA 15/13%Cr. FACING ON WCB+ STELLITEDWC6+ STELLITEDLCB+ STELLITEDCF8/CF8M STELLITEDCF3/CF3M STELLITED5SEA... Read moreGate Valve Supplier In Khed
With The Ultimate Aim Of Delivering The Best Quality Industrial Products, We Are Engaged In Manufacturing And Supplying Gate Valve. To Manufacture These Gate Valves, We Use Finest Quality Of Stainless Steel, Sourced From The Reliable Vendors. Before Offering To The Clients At The Market Leading Prices, We Check The Gate Valve On Quality And Durability Parameters. The Easy Installation And Compact Design Make It Highly Desirable. The Coated Construction Prevents It From Corrosion. It Is Available Continue
Gate Valve Manufacturers In Mahad
Reliable Isolation For Industrial Fluid SystemsWe Are A Company Specializing In The Manufacturing And Export Of Gate Valves, Essential Components For Controlling The Flow Of Liquids And Gases In Industrial Pipelines. These Valves Are Designed For Full Flow Isolation And Are Primarily Used To Start Or Stop Fluid Flow Within A System. With Their Robust Construction And Efficient Sealing Properties, Gate Valves Offer A Reliable Solution In Various Applications, From Water Treatment And Oil And Ga Continue

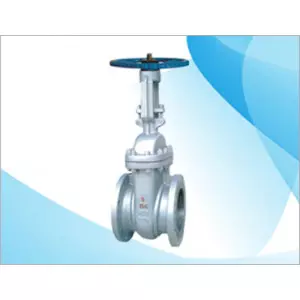

Industrial Gate Valve Manufacturers In Dahej
