Industrial Flush-bottom Valve Manufacturers Khed

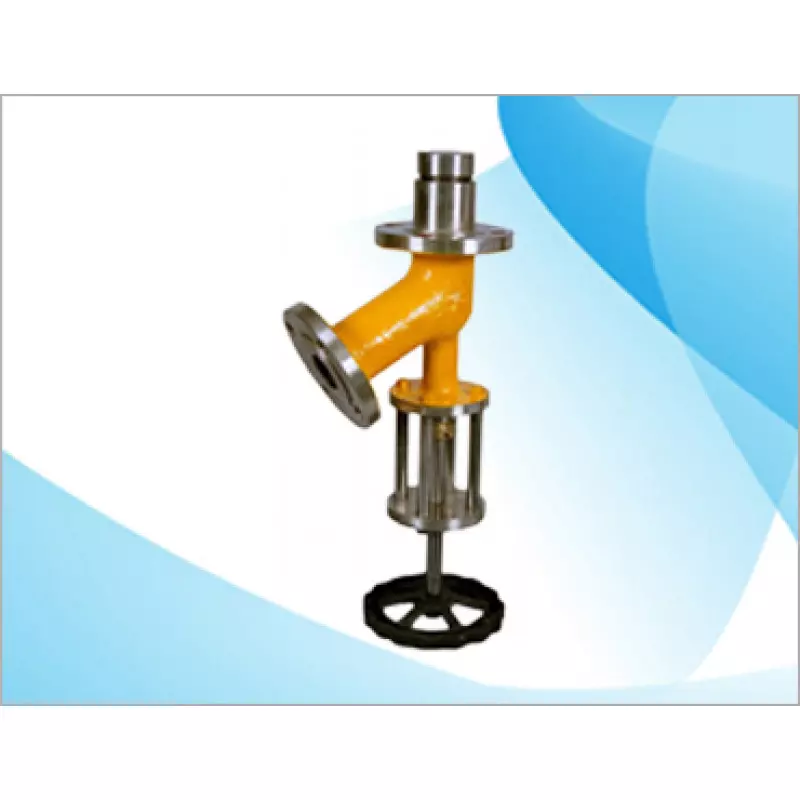

Details of Flush Bottom Valve
We are delivering unmatched flush-bottom valves from Pune for heavy-duty industrial discharge solutions
Industrial Deployment & Applications
We are manufacturing flush bottom valves that serve critical functions in industries such as pharmaceuticals, chemical processing, food & beverage, dairy, biotech, fermenters, and tank farms. These valves are installed at the bottom of reactors, vessels, silos, tanks, and separators to ensure complete drainage, avoid dead zones, and facilitate Clean-in-Place (CIP) and Sterilization-in-Place (SIP) operations. We are supplying to OEMs and plant maintenance units who require flush bottom valves that perform well under varying pressures, temperatures, and media viscosities — from thin liquids to slurry or viscous mixtures.
We are providing solutions in and around Pune (industrial areas like Pimpri, Chakan, Bavdhan, etc.), and have local manufacturing / distribution partners who can handle customization (size, materials, actuation) quickly. Examples of deployment include tank bottom discharge in pharmaceutical formulation plants, quick drain-off in reactors to reduce cleaning downtime, and flush valves for vessels holding high-purity or corrosive fluids.
Features of Our Flush Bottom Valves
Manufactured using corrosion‑resistant materials like SS 304, SS 316, CF8, CF8M, or specialist alloys depending on the media.
Cavity‑free or low dead‑space design to prevent residue accumulation and simplify cleaning.
End connections flanged or as per vessel bottom flange profiles; optionally with extended stem or jacket for thermal stability.
Leak-proof sealing: soft seats (PTFE, TFM, etc.) or metal‑to‑metal / stellite‑coated sealing for high‑pressure or abrasive environments.
Multiple actuation options: manual, pneumatic, motorized, or gear‑assisted as per process automation needs.
Pressure & temperature ratings tailored to process requirements, with tests conforming to standards such as API‑598, DIN, ANSI, ISO where applicable.
Specification
| Parameter | Typical Specification Range / Option |
|---|---|
| Size (Nominal Bore) | 15 mm to 250 mm (or more, custom sizes available) |
| Pressure / Rating | ANSI Class 150 / PN 20 up to ANSI Class 600 / PN 100 (depending on material) |
| Temperature Range | −20 °C up to +280 °C (soft‑seated) |
| Materials of Construction (MOC) | SS 304, SS 316 / CF8, CF8M, Carbon Steel (WCB), Alloys (on request) |
| End Connection Type | Flange, Butt Weld, Socket Weld, Vessel‑bottom matching flanges, etc. |
| Sealing Type | PTFE, resilient or stellite / metal‑to‑metal hard faced seats |
| Actuation / Operation | Manual lever / hand wheel, pneumatic actuator, motor or gear assisted |
Offered Product
Flush Bottom Valve
Types Of Flush Bottom ValveInside Opening Flush Bottom Valve Y Type Flush Bottom Valve Outside Opening Y Type Flush Bottom Valve Flush Bottom Valves, Flush Bottom Valves Manufacturer, India MATERIAL SPECIFICATIONPart No.QTYDESCRIPTIONMATERIAL11BODYASTM A 216 GR. WCB / CF8 / CF8M21YOCKASTM A 216 GR. WCB / CF8 / CF8M31PLUGAISI 304/AISI 31641PLUG NUTAISI 304/AISI 31651SEAT RINGAISI 410 13% CR. / 304 / 3166... Read moreFlush Bottom Valve For Clean Tank Drainage Chiplun
Flush Bottom Valve For Tank And Reactor DrainageAt Our Firm, We Supply Industrial-grade Flush Bottom Valves Used For Complete Draining Of Tanks, Vessels, And Reactors Without Any Residue. These Valves Are Specially Manufactured To Allow Smooth Discharge At The Bottom-most Point, Ensuring Cleanliness, Process Efficiency, And Zero Material Hold-up.Ideal For Chemical, Pharma, And Food Processing UnitsWith Our Expertise In Fluid Control Systems, We Offer Flush Valves Widely Used In Reactors, J Continue
Flush Bottom Valve Manufacturer & Supplier In Wadiwadi
Our Subsidiaries Are Manufacturing Flush Bottom Valves For Effortless Discharge Of Powders, Grains, And Bulk Materials In Industrial Hoppers And Silos. These Valves Are Widely Used In Food Processing Plants, Chemical Industries, And Pharmaceutical Units For Leak-free Operation, Precise Flow Control, And Minimal Residue. Manufactured With Corrosion-resistant Raw Materials, They Ensure Long-term Durability, Effortless Maintenance, And Reliable Performance Even In High-capacity Operations, Doing Th Continue
Flush Bottom Valve Manufacturers In Sambalpur
We Are Actively Engaged As A Flush Bottom Valve Manufacturer. The Range Of Flush Bottom Valves Offered By Us Is Offered In A Wide Range And Are Highly Praised By The Clients For The Global Quality Standards They Meet. Customers Can Get Flush Bottom Valves In Different Dimensions, Sizes And Designs That Meet Their Diverse Needs. Our Ranges Are Manufactured According To A Strictly Controlled Production Process And Are Tested To Provide The Required Performance Even Under High Stress Conditions. Continue
