Understanding Globe Valves: Function, Types, and Applications

Globe valves are one of the most commonly used types of valves in piping systems. They are primarily designed to regulate, start, or stop the flow of fluid through a pipeline. Unlike simple on/off valves, globe valves offer precise flow control, making them a popular choice in industries where accurate regulation is critical.

What is a Globe Valve?

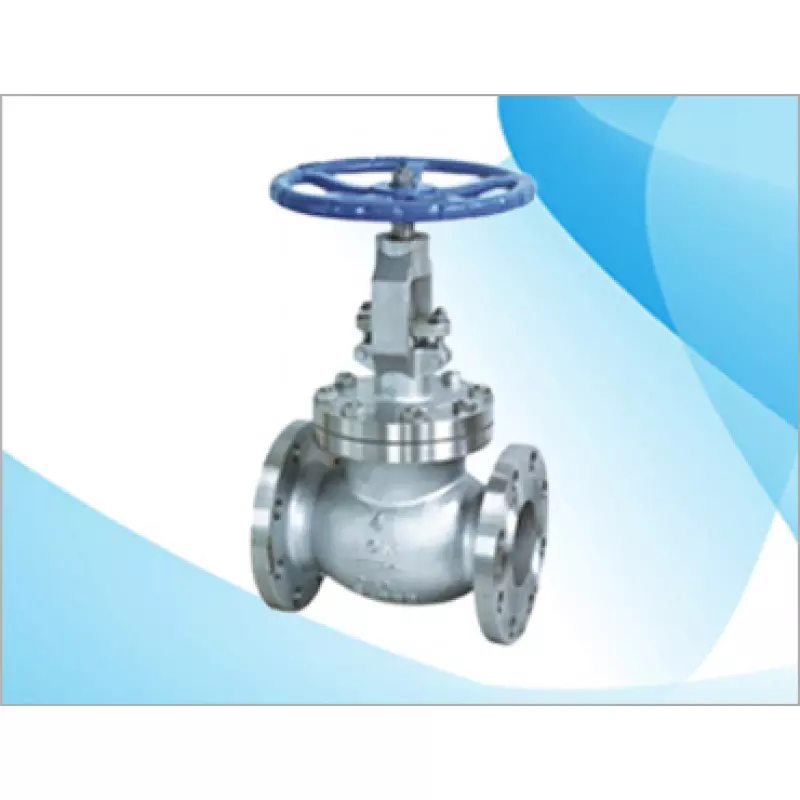

A globe valve is a linear motion valve that uses a movable disk-type element and a stationary ring seat in a generally spherical body to control fluid flow. The name “globe valve” comes from the round body shape traditionally used, which resembles a globe.

Key components of a globe valve include:

Body: The main housing that contains the internal components and connects to the piping system.

Bonnet: The cover on top of the valve that houses the stem and packing.

Disk (or Plug): The movable element that opens or closes to regulate flow.

Seat: The stationary ring against which the disk seals to stop flow.

Stem: Connects the disk to the actuator or handwheel, transmitting motion to open or close the valve.

Handwheel or Actuator: Allows manual or automated operation.

How Does a Globe Valve Work?

When the handwheel or actuator turns the stem, the disk moves either upwards or downwards, allowing fluid to flow through the valve or blocking it completely. The fluid must change direction within the valve body, which creates resistance and pressure drop—a key consideration when designing a system.

Globe valves are excellent for:

Throttling flow: They provide fine control of flow rate.

Start/stop operations: They can fully open or close pipelines with tight sealing.

Materials and Construction

Globe valves are manufactured from various materials depending on application and operating conditions:

Carbon steel and stainless steel: Common in industrial processes.

Bronze and brass: Often used in water, oil, or gas systems.

Cast iron: Suitable for low-pressure applications.

The disk and seat can also have different trims (hard-faced, soft-seated) to handle abrasive fluids or achieve tight sealing.

Disadvantages

Higher pressure drop due to fluid flow changes inside the valve.

Larger and heavier compared to gate or ball valves of the same rating.

Not ideal for applications requiring fully open valves with minimal flow resistance.

Conclusion

Globe valves are essential components for precise flow control in piping systems. Their design allows for accurate throttling and reliable shut-off, making them suitable for a wide range of industrial applications. Understanding the types, materials, and flow characteristics of globe valves is crucial for engineers and operators looking to optimize system performance and longevity.
